Fully Assembled vs. Barebone
The Fully Assembled version includes:
- The keyboard PCB, the case, and the PC plate
- Keycaps (included Mac & Windows keycaps)
- Switches

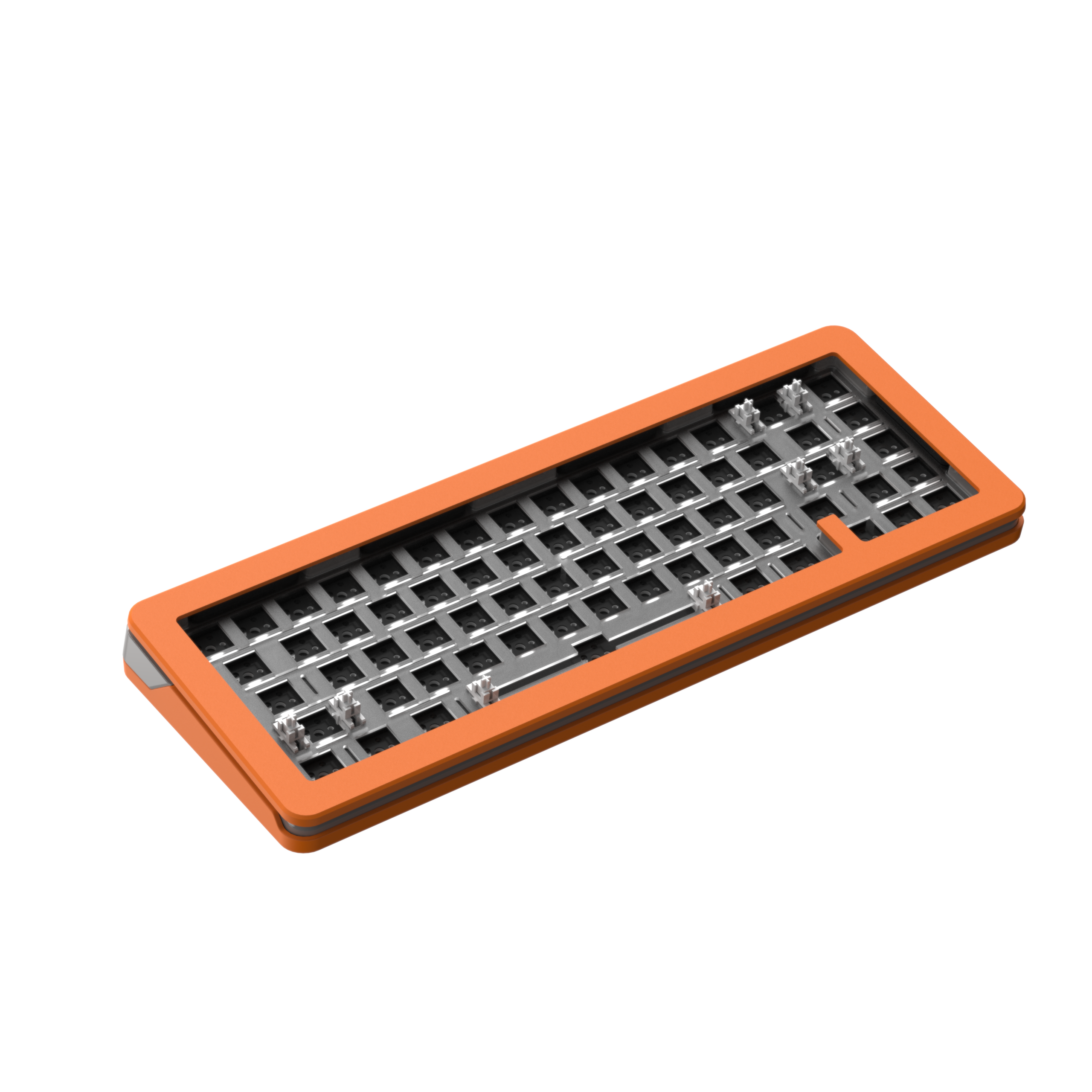

The Barebone version includes:
- The keyboard PCB, the case, and the PC plate
Does not include the keycaps and switches. This kit need to assemble by yourself.
Pre-Order Benefits
The first 1000 users to place an order will receive a
set of wrist rest for free.
(Note: only 1 set of wrist rest will be given for each ID.
1 set contain 2pcs and the colors is random.)
Bluetooth / Wired / 2.4G Wireless
MacOS /Windows
Hot-swappable
RGB
16 million colors
4000 mAh
battery
Gasket
Mount
Aluminum upper and lower covers
RGB
16 million colors

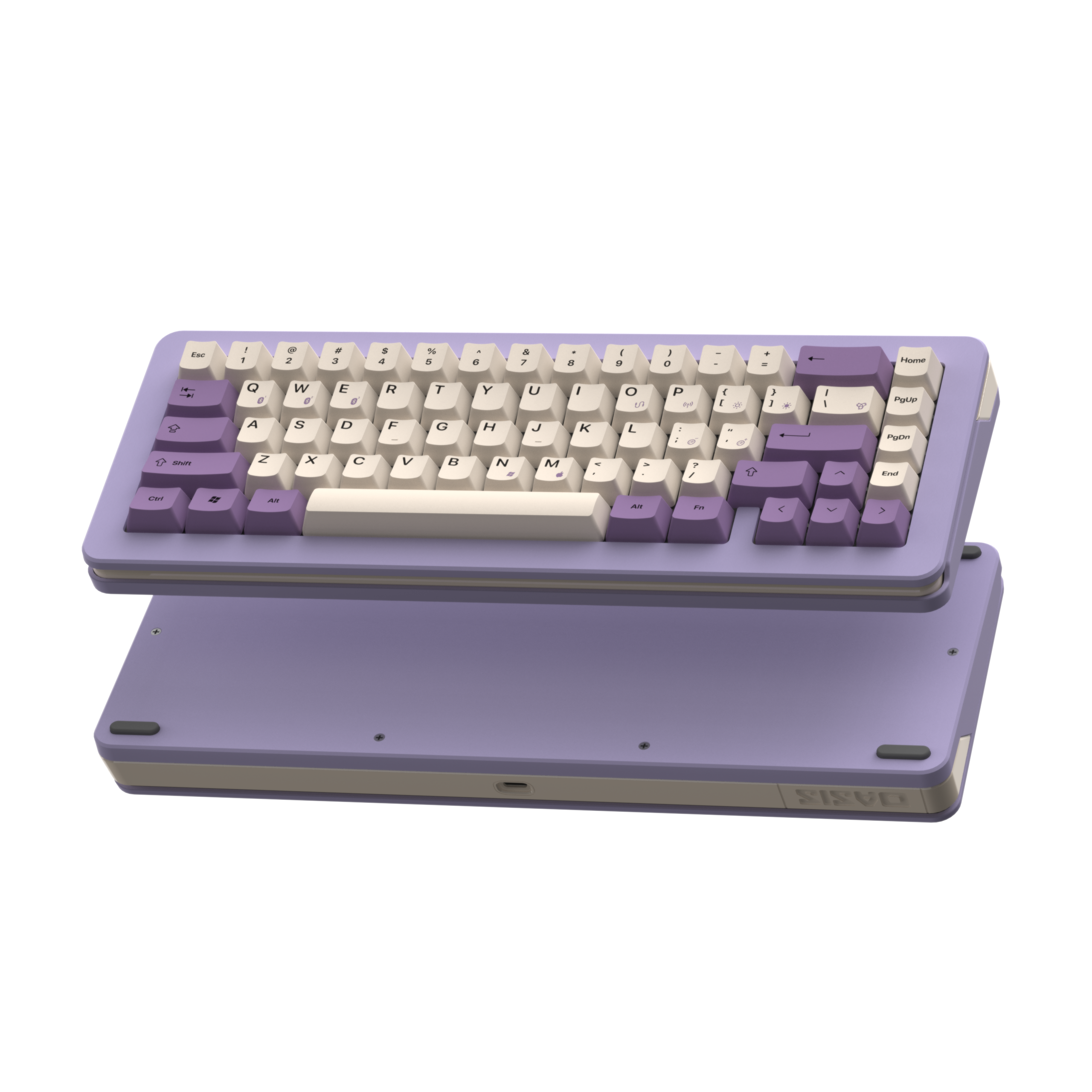

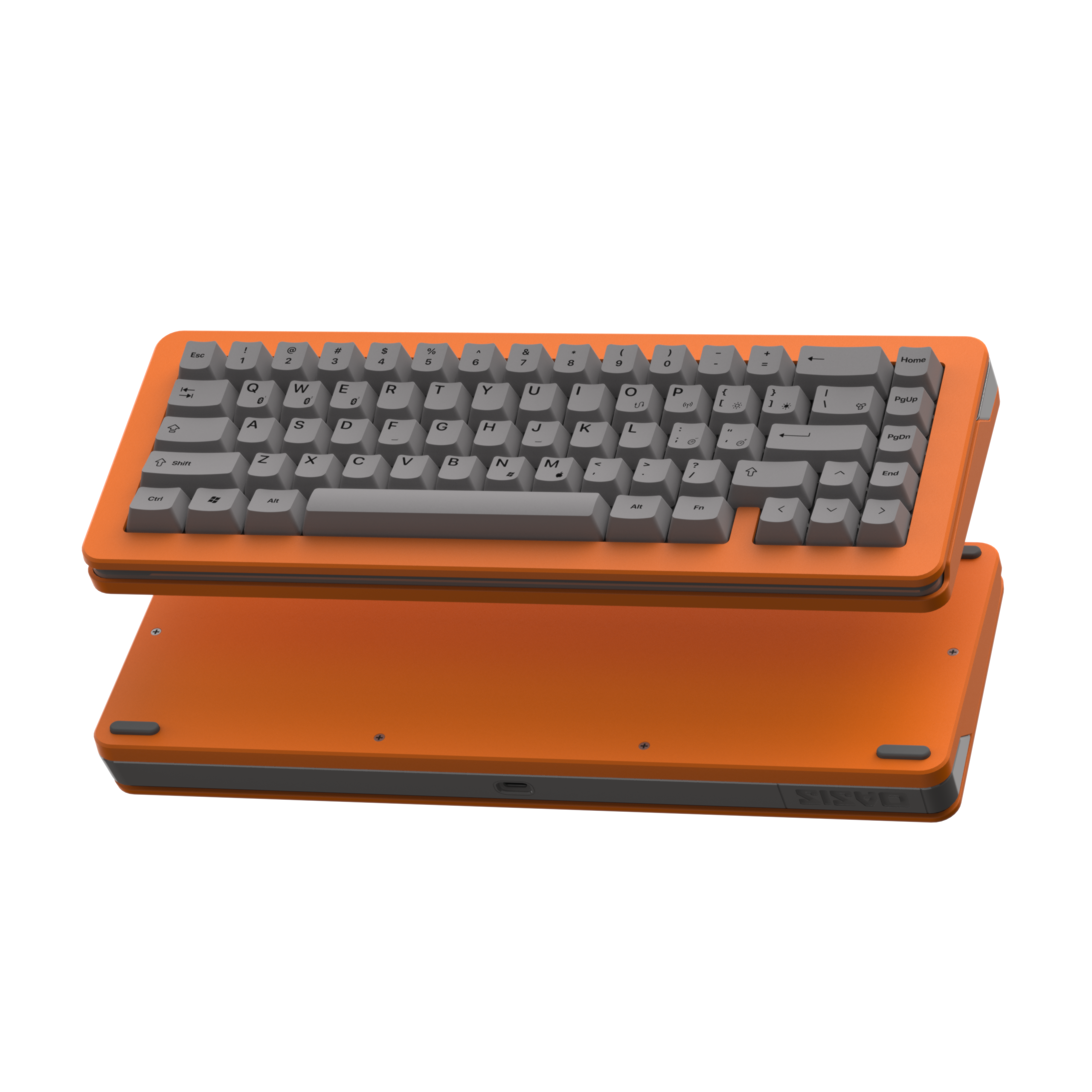

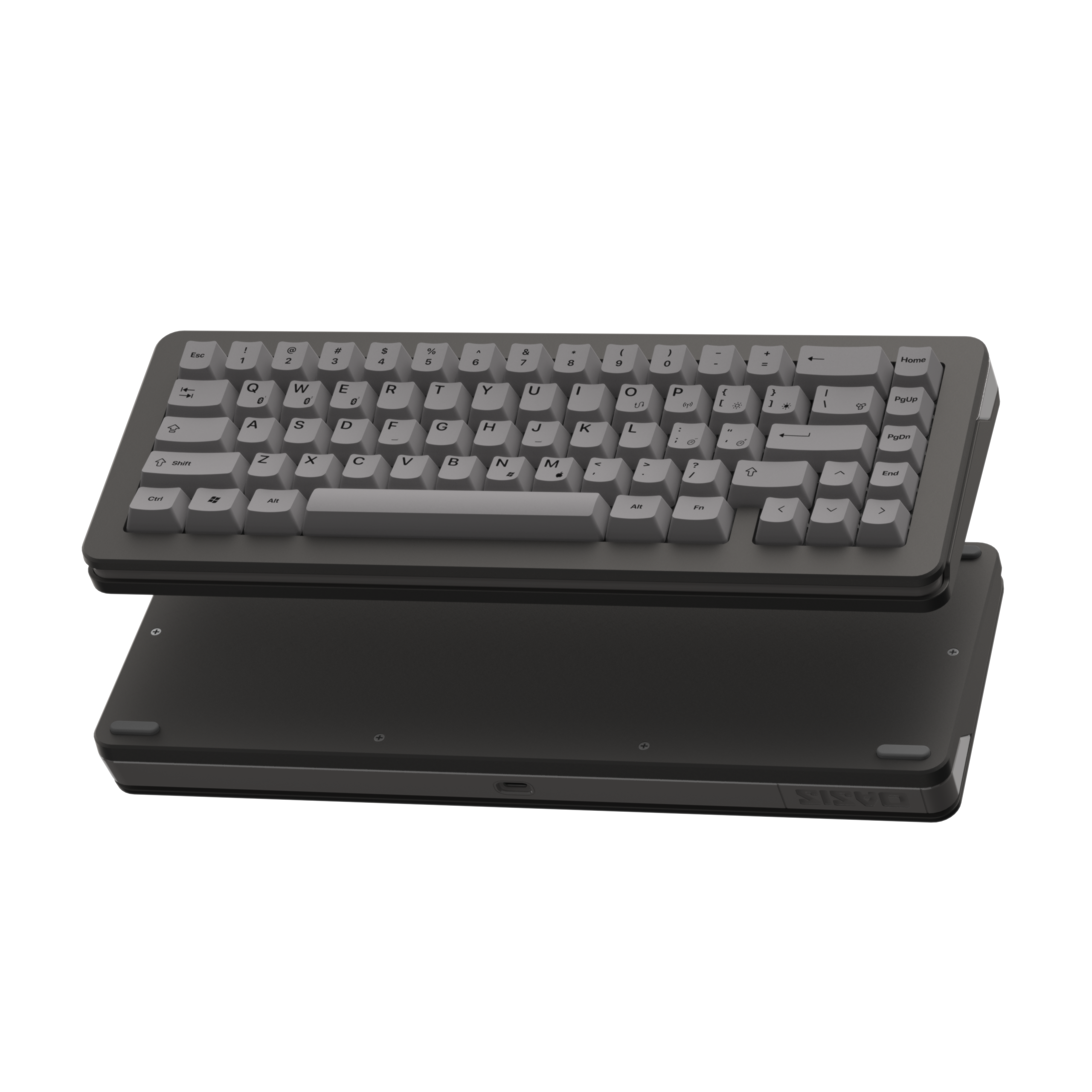

Sandwich Structure
CNC aluminum upper and lower covers, spray coloring
Injection-molded frame in the middle, optimized for Bluetooth connection signal
Sandwich Structure
CNC aluminum upper and lower covers, spray coloring
Injection-molded frame in the middle, optimized for Bluetooth connection signal
Gasket Mount
The keyboard adopts a Gasket structure, which reduces
internal resonance and noise, making the sound crisper
and the feel softer and bouncier.
PCB Flex Cut
for Ultra-Soft Bounce
On the basis of the Gasket structure, the PCB slotting is
added toprovide more shock absorption and buffering,
further enhancing the soft and bouncy feel.
Multi-Layer Noise Reduction Structure
Built-in four-layer noise reduction pads, greatly reducing
the cavity sound, making the sound of the entire
keyboard more pure.
Switches
Desert Switches
Tactile
43
gf
±10
Operating Force
50
gf
±10
Terminal Force
2.0
mm
±0.4
Pre-travel
5000
million
Durability
3.8
mm
±0.4
Total Travel
POM
Keystroke Materials
Oasis Switches
Linear
37
gf
±10
Operating Force
45
gf
±10
Terminal Force
1.2
mm
±0.4
Pre-travel
5000
million
Durability
3.6
mm
±0.4
Total Travel
POM
Keystroke Materials
Wireless and Wired
Three-mode connection, supporting wired, 2.4G, and Bluetooth
connections, can quickly switch between multiple devices.
（Supports multiple devices, including Mac, Windows, iOS,Android, Linux）
Full Key Non-Conflict
and Hot-Swappable
Convenient for installing other switches according to your own
habits, making Oasis65 more in line with your typing habits.
South-Facing RGB
16 million colors of RGB lighting, creating a colorful and ever-changing dynamic RGB lighting effect combination, with even color distribution, and multiple built-in lighting effects.
4000mAh Battery,
Ultra-Long Battery Life
Built-in high-capacity 4000mAh battery provides up to 200 hours of continuous use, meeting the needs of nearly a month's use.
Experimental data is based on normal office environment usage testing (with all lights off).
Designed for Mac and Windows
Native dual-OS support, switch quickly with shortcut keys.

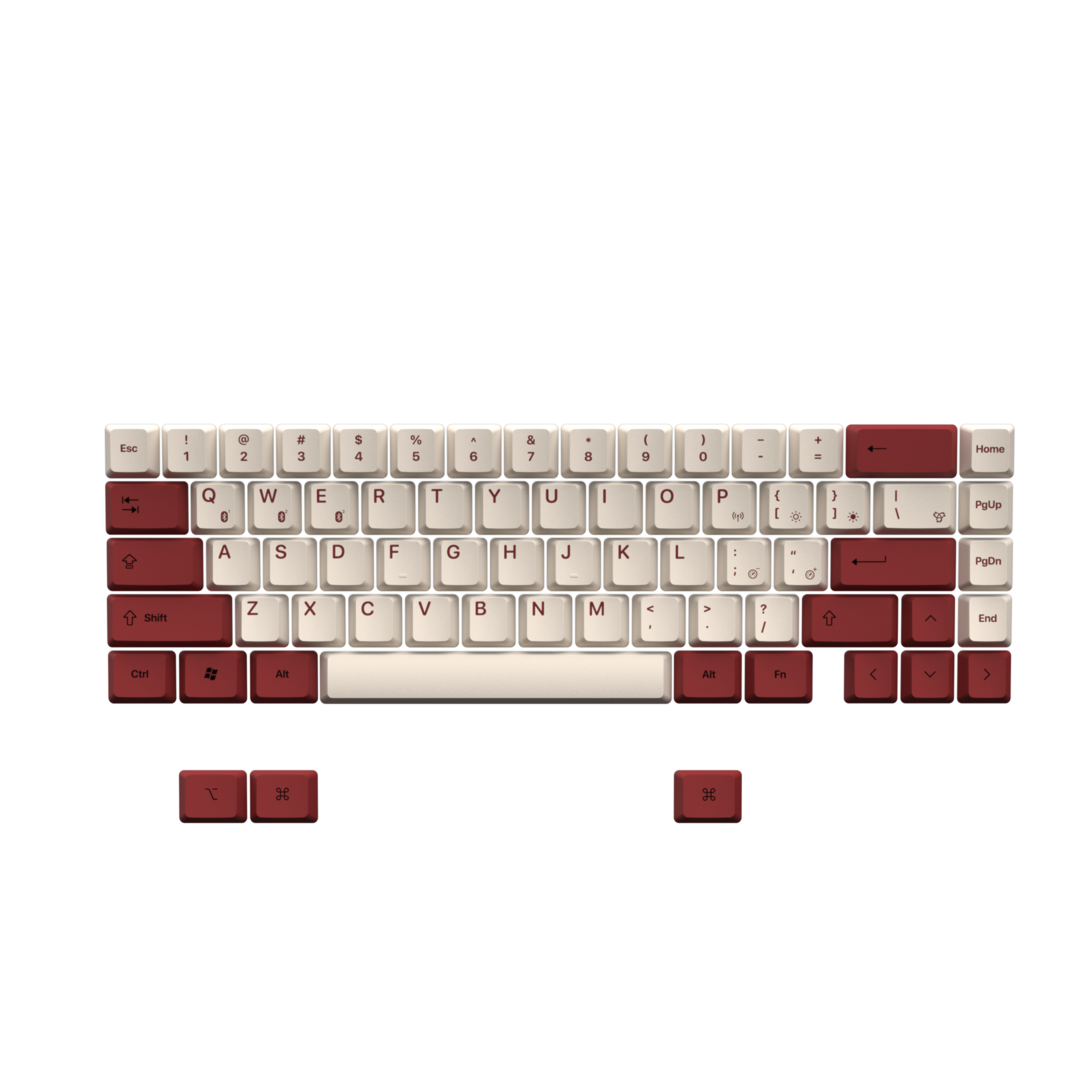

Equipped with additional keycaps for replacement.
Bluetooth Mode Pairing / Switching
1
Simultaneously press
Fn
+
Q
/
W
/
E
until the corresponding
key's white light flashes to initiate Bluetooth pairing.
2
Search for the keyboard "Oasis65" on the device and connect to it when the blue light flashes correspondingly
3
Press
Fn
+
Q
/
W
/
E
to switch to Bluetooth devices 1 to 3.
2.4G Mode Pairing
1
Simultaneously press
Fn
+
P
until the corresponding light flashes to enter the matching mode.
2
Insert the 2.4G receiver, and the white light will stop flashing when the matching is successful.
Fn Key Basic Combination Functions
Fn
+
1
=
F1
Fn
+
2
=
F2
Fn
+
0
=
F10
Fn
+
=
F11
Fn
+
=
F12
Fn
+
Esc
=
~
Fn
+
Win
=
Lock / Unlock Win
Fn
+
Space
=
Long press for 3 seconds to restore factory settings
Dynamic Lighting Effect Combination Keys
Fn
+
=
Increase total brightness
Fn
+
=
Decrease total brightness
Fn
+
=
Switch to single color
Fn
+
=
Speed up lighting effect
Fn
+
=
Slow down lighting effect
Fn
+
=
Switch lighting effects
Charging Indicator Light
1
During charging,
Esc
indicator light will light up with a red backlight.
2
After fully charged,
Esc
indicator light will turn off.
3
When the battery is low,
Esc
indicator light will flash with a red backlight.
Tech Specs
General
- Product Name : Oasis 65
- Number of Keys : 67 keys
- Connectivity : 2.4G wireless,
- bluetooth,and wired
- Battery : 4000mAh
- Compatible System:MacOS / Windows /
- Android / iOS / Linux

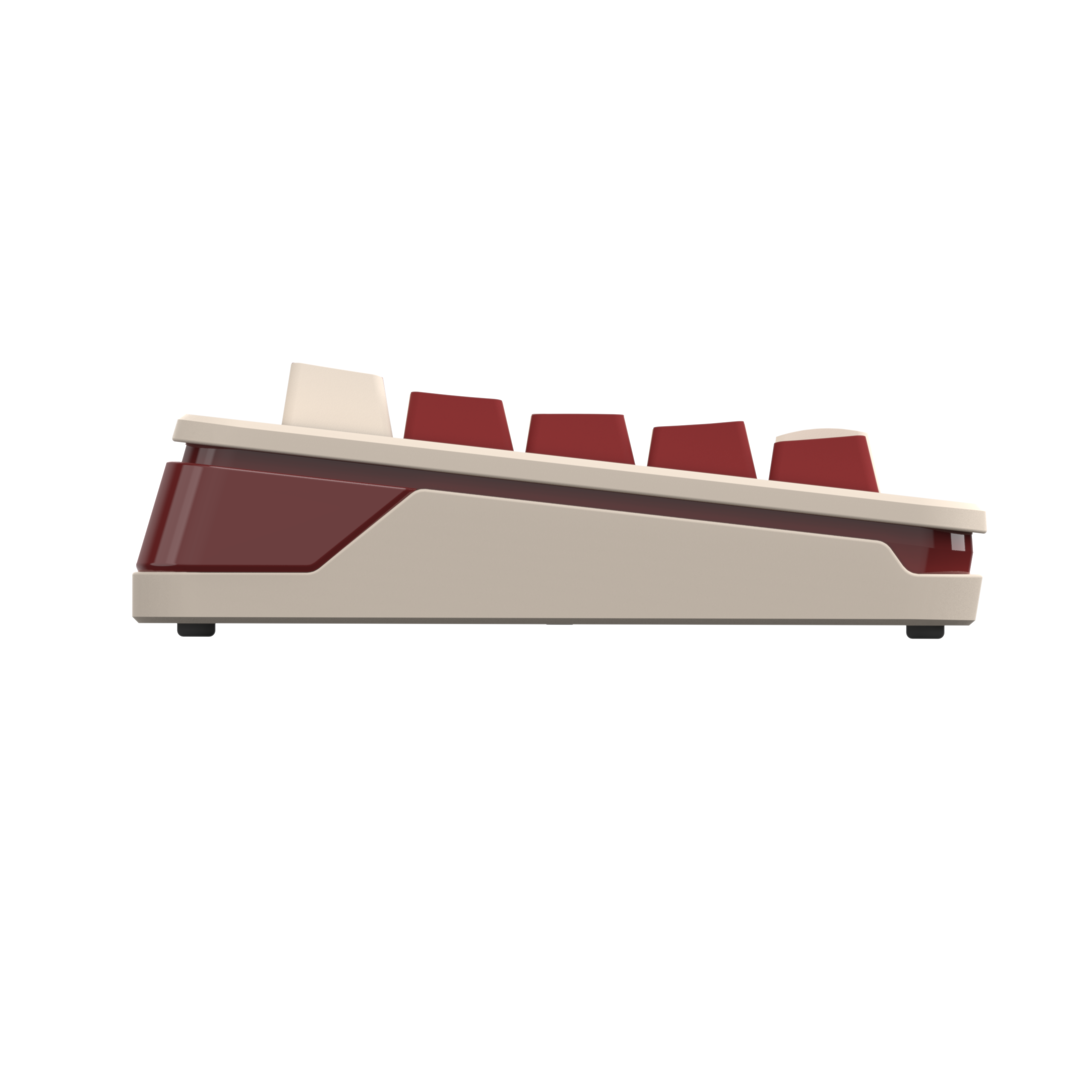

- Typing Angle :6.3°
- Width :132.3mm
- Length :335.7mm
- Height :32.7mm (without keycaps)
Materials
- Upper Case: Aluminum
- Middle Frame: Plastic
- Lower Case: Aluminum
What’s in the box?
Fully Assembled Version
Keyboard
1x Fully Assembled Keyboard
Including
1x PCB
1x PC Plate
1x PCB Foam
1x Switch pad
1x Case Foam
20x Gasket pads
1x Stainless steel
plate
1x IXPE foam pad
2x 2mm case foam
2x 4mm case foam
9 x Extra Keycaps
4 sets × Stabilizers
1 set x Keycaps
1 set x Gateron Switches
(or Custom Switches)
Cable
1x Usb to Type-C Cable
1x 2.4G Receiver
Tools
1x Switch/Keycap Puller
1x Screwdriver
1x Quick Guide
Barebone Version
Keyboard
1x Keyboard Kit
(Without Keycaps
& Switches)
Including
1x PCB
1× PC Plate
1x PCB Foam
1x Switch pad
1x Case Foam
20x Gasket pads
1x IXPE foam pad
1x Stainless steel plate
2x 2mm case foam
2x 4mm case foam
4 sets × Stabilizers
Cable
1x Usb to Type-C Cable
1x 2.4G Receiver
Tools
1x Switch/Keycap Puller
1x Screwdriver
1x Quick Guide
